Workboats and Special Vessels
.webp)
Prepared for every mission
Whether it's mapping the harbor bottom with sonar systems, collecting floating timber, rescuing people or analyzing samples in laboratory rooms - we help our customers to develop a ship concept specially adapted to their extraordinary purpose. Often, several possible applications are combined in a single vessel, creating a flexible “all-rounder” that can be used for a wide variety of tasks.
Sustainable drive solutions such as hybrid or all-electric systems that make operation efficient and environmentally friendly are also important here. These ships are not only designed to be powerful, but also visually stunning.

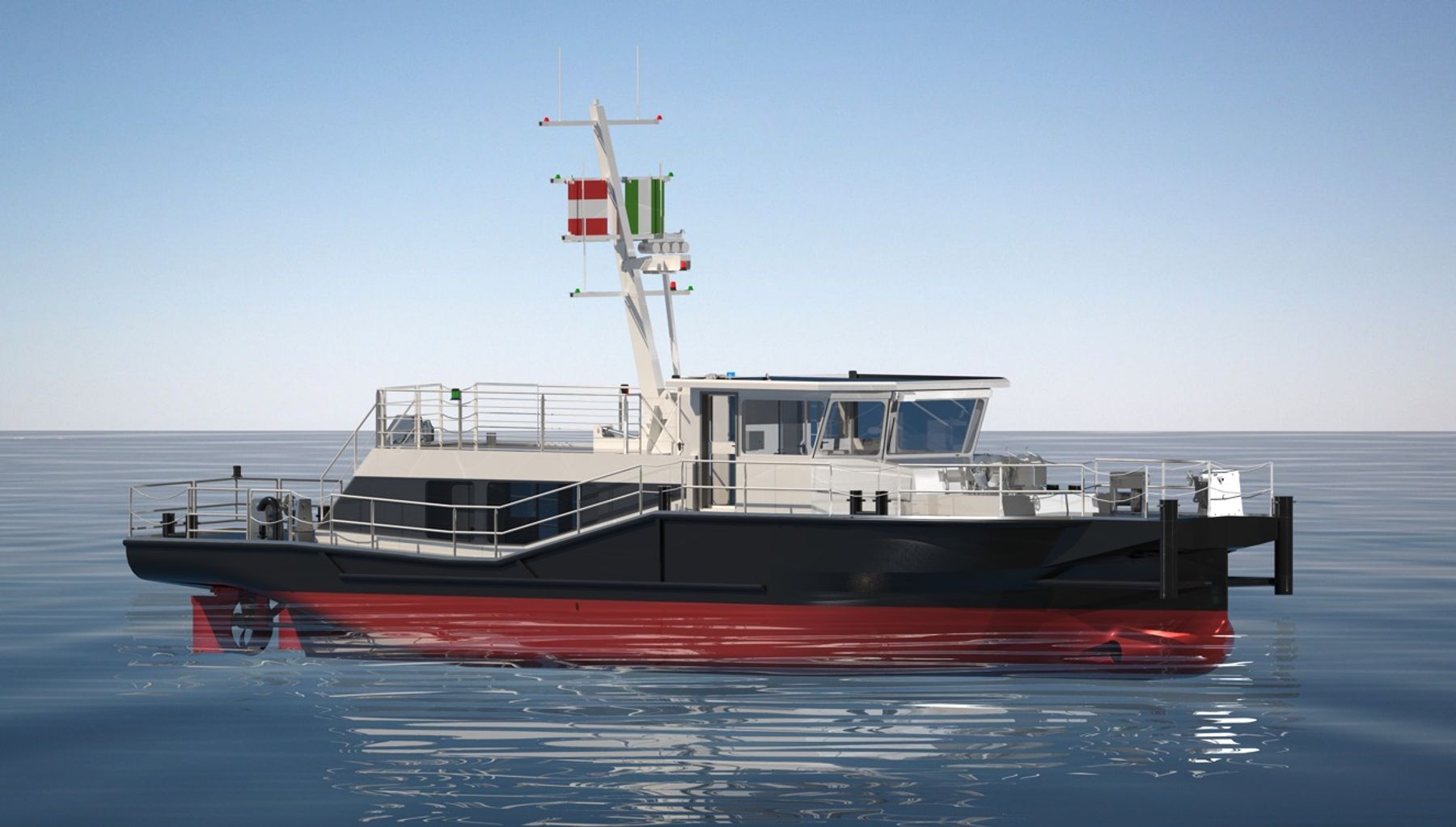

Electric Port Authority boat
- Year
- 2021
- Length
- 16m
- Width
- 4,9m
- Drive
- Electric
- Drive power
- 2x 100kW
- Speed
- 14km/h
- Capacity
- 6 people
To reduce the overall emissions in Germanies maritime capital the port authority received a basic design for emission free workboats from us.
Workboat for Port Authority
- Year
- 2021
- Length
- 23,9m
- Width
- 5,5m
- Drive
- Diesel electric
- Speed
- 20km/h
To ensure that the harbor and is surrounding infrastructure is safe and well maintained this sounding- and workboat was developed and constructed by us.

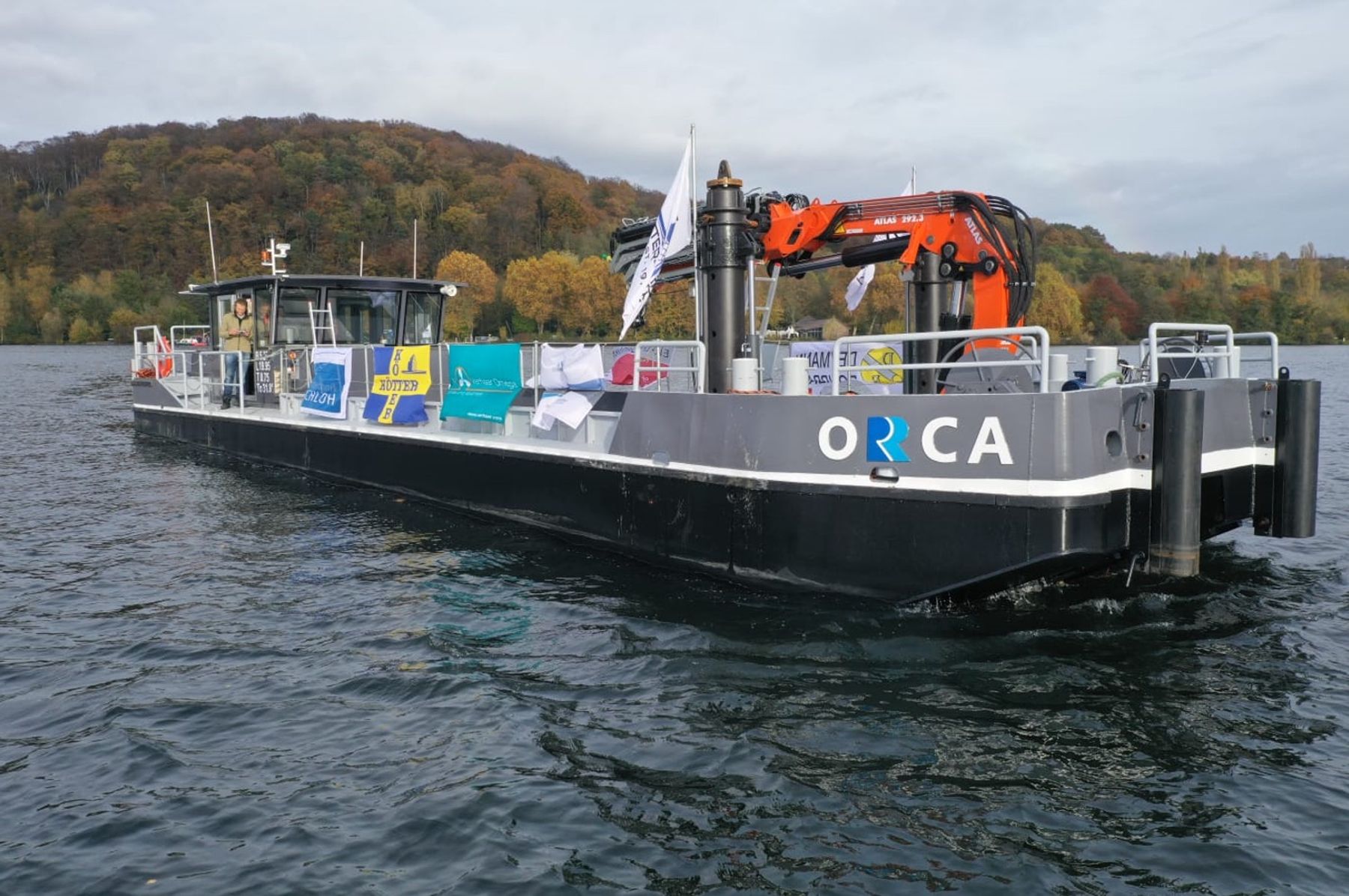

Workboat with crane and spuds
- Year
- 2020
- Length
- 19,95m
- Width
- 5,2m
- Drive
- Diesel-electric
- Drive power
- 180kW
- Speed
- 13km/h
- Capacity
- 60 tdw
This diesel electrically powered workboats task are reaching from transportation, inspections up to heavy lift operations including the usage of spuds. The basic and detail design was carried out by us.
Navy diving support vessel
- Year
- 2020
- Length
- 17m
- Width
- 5,2m
- Drive
- Diesel
- Drive power
- 2x 37kW
- Capacity
- 5 people, 9 divers
For the Germany navies special forces, we had the honor to developed a diving support vessel for training purposes.
Collection vessel
- Year
- 2020
- Length
- 15m
- Width
- 5,6m
- Drive
- Diesel
- Drive power
- 156 kW
- Speed
- 8km/h
For the lake Constance we developed three vessels which are capable of collecting up to 12 t of driftwood, seaweed and debris. The vessels are particular in use after the flood seasons to protect the rivers infrastructure downstream of lake Constance

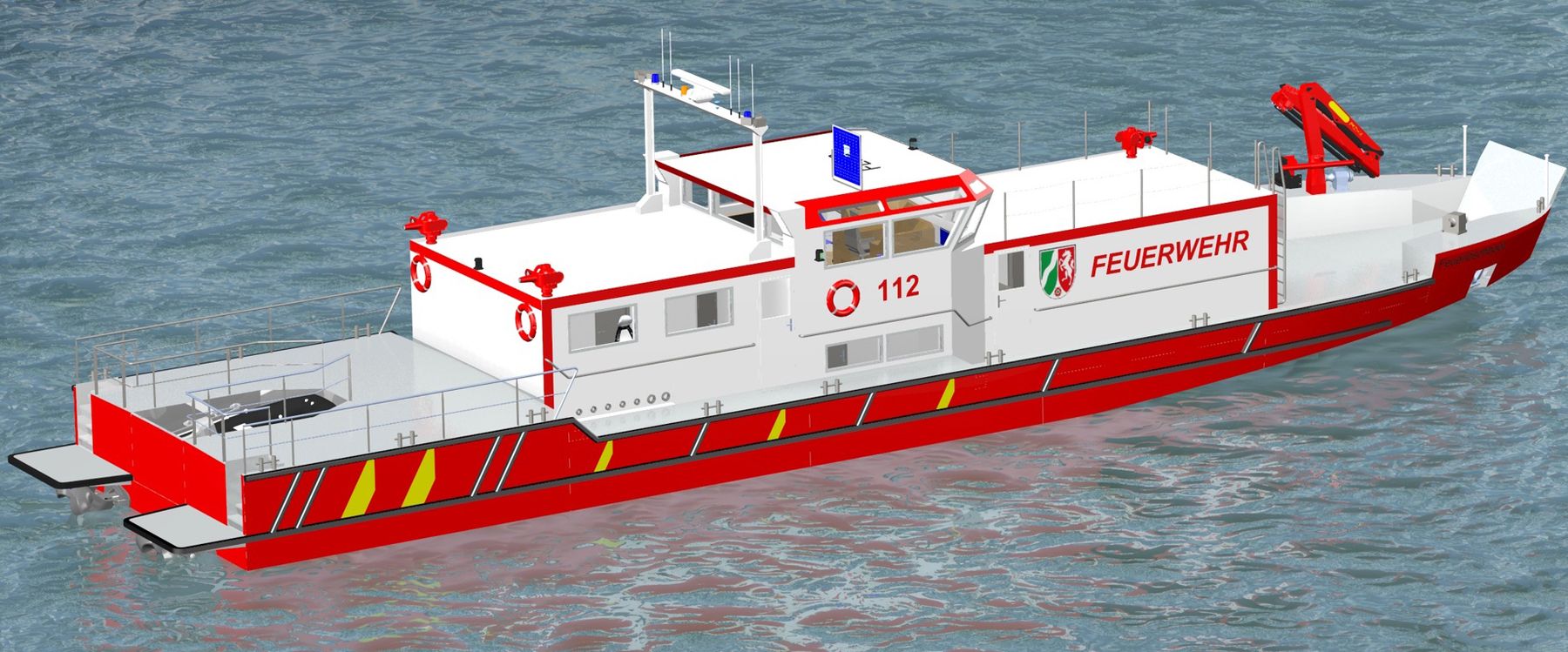

Firefighting vessel
- Year
- 2016
- Length
- 29,5m
- Width
- 7m
We designed these aluminum boats with jet propulsion. They are characterized by high speed and easy handling. They have not only been designed for fire-fighting operations, but also for all kinds of rescue operations on the Rhine and Main. Of course, this includes driving at night or driving in a potentially explosive or toxic environment.
Electric laboratory vessel
- Year
- 2014/15
- Length
- 10,5m
- Width
- 4,1m
- Capacity
- 20 Pax
This workboat is meant to take water probes and to surveil a drinking water reservoir. Due to is zero emission and oil free design it executes is tasks with a maximum of safety for this sensitive environment
Coast Guard / Coast Authority
- Year
- 2001
- Length
- 32,5m
- Width
- 8,4m
- Drive power
- 2x 375kW, Bowthruster with 150kW
- Speed
- 20km/h
- Capacity
- 3-10 people
We have planned a water surveillance vessel for the coastal waters of Mecklenburg-Western Pomerania, which is to be used in particular to combat oil spills.
